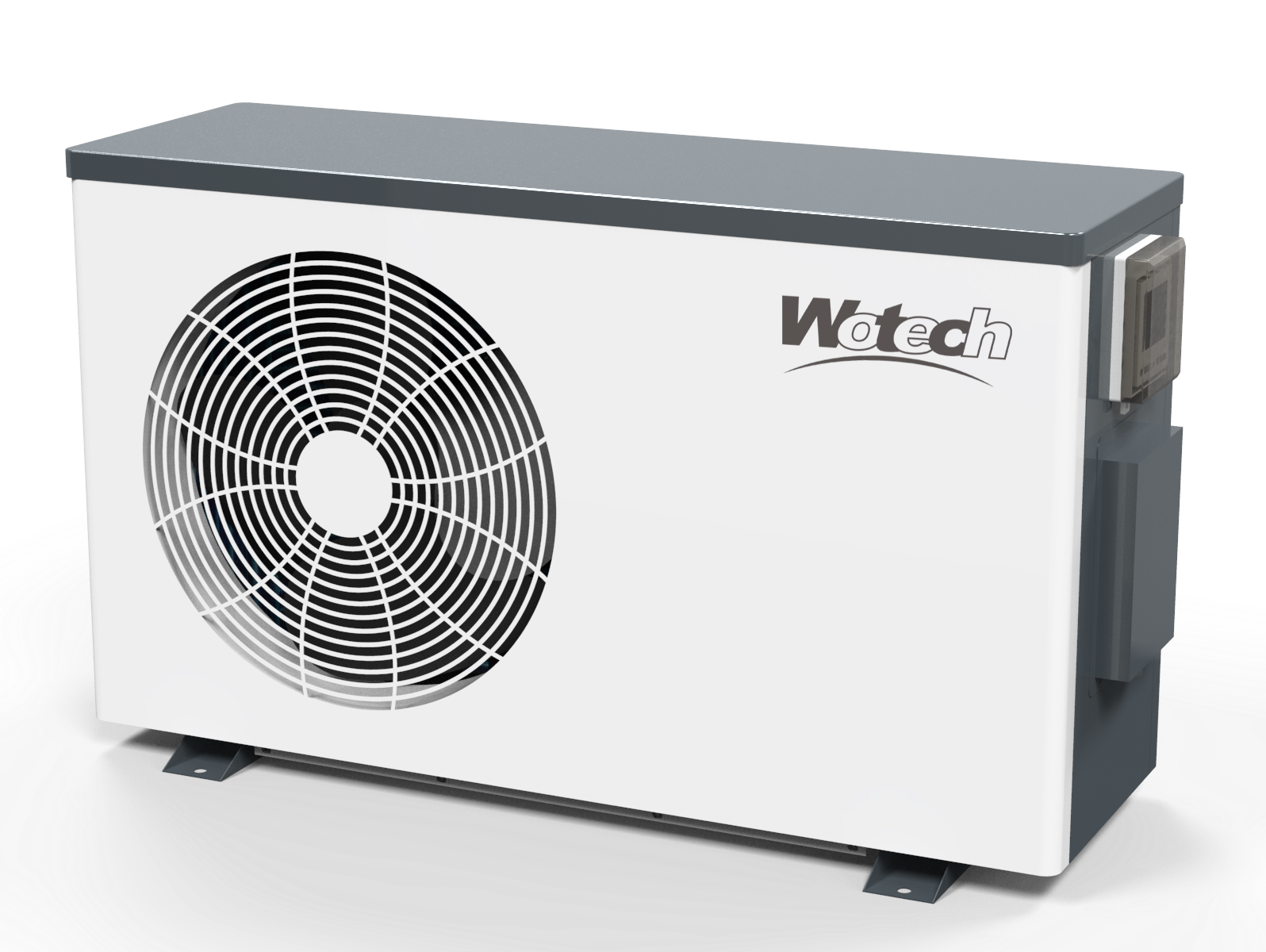

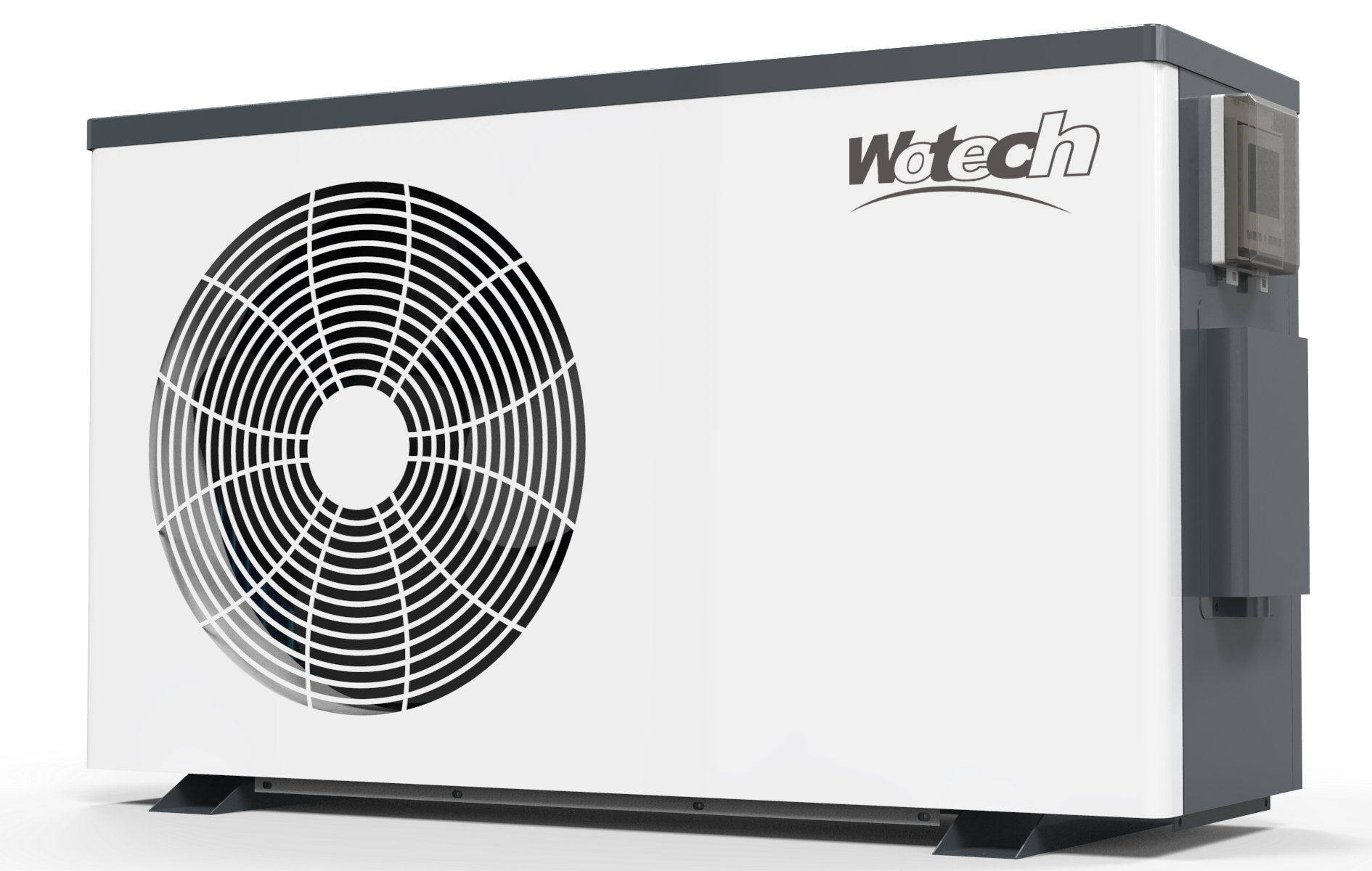

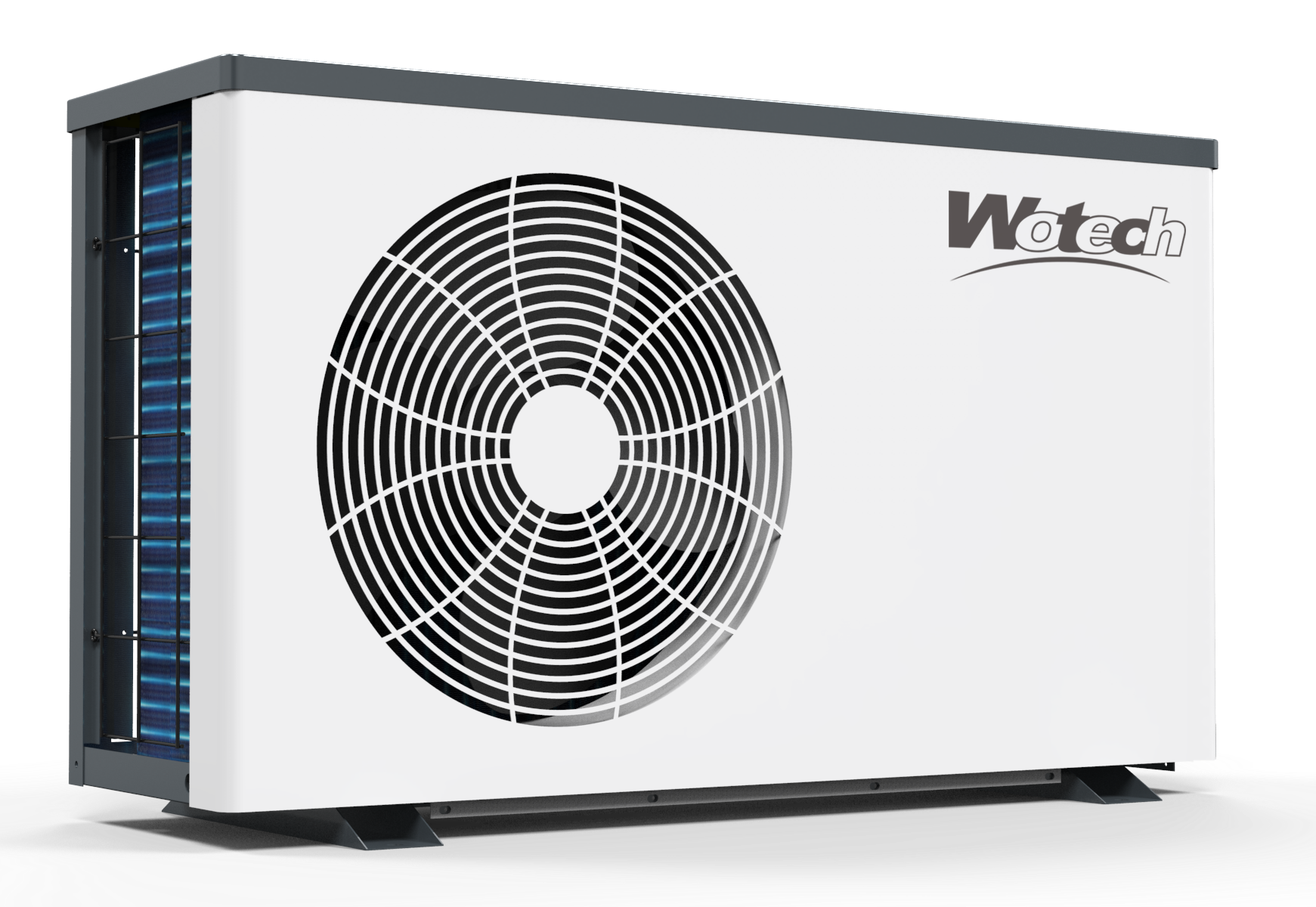

ECO Inverter Residentail R32 Swimming Pool Heat Pump
You are here: Home » Product » Swimming Pool Heat Pump » ECO Inverter Residentail R32 Swimming Pool Heat Pump

Product Category

ECO Inverter Residentail R32 Swimming Pool Heat Pump

Availability:

Eco inverter swimming pool heat pump

Features:

Full inverter technology,High COP

Use Eco frendly R32 refrigerant

Higher efficient heating/cooling-Saving energy cost

Heating & Cooling function

Galvanized steel powder coating casing

World brand compressor

LED/LCD display and control panel


Wide working temperature range-Extend swimming seasons

标准变频

Inverter Technology

Intelligent Inverter tech will keep the constant water temperature automatically, a much more convenient swimming experience than an ON/OFF system.

Hfdc907e443164f4aad2e1cbf5908b651O

Eco Friendly Refrigerant R32

Compared to the refrigerants widely used today, such as R22 and R410a, R32 has a global warming potential that is two-third lower and it is remarkable for its low environmental impact, which speed up the its popularity in the industry.

Hb2eefb3295c34f35ab0a6a3a247c7d95p

Higher Efficient: Heating/Cooling

By utilizing 4 ways valve, provide both heating and cooling mode to create more possibility for pool enjoyment.

QQ图片20230111100333season

Built-in WIFI function make your life smarter(optional)

H0a7867d034924c16b7b8f78b5caf500dv



CODE WP06EVWP08EVWP10EVWP12EVWP17EVWP19EVWP21EV
Heating Performance Condition: Air 27ºC, Water 27ºC
Max Heating Capacity (KW)5.77.1911.516.318.920.7
COP5.7~11.25.8~12.55.9~12.55.7~11.95.5~11.05.2~11.25.3~11.8
Heating Performance Condition: Air 15ºC, Water 26ºC
Max Heating Capacity (KW)4.55.87.28.412.414.215.2
COP4.5~5.64.7~6.24.6~5.74.6~6.24.5~5.94.4~6.64.3~6.5
Operating Air Temperature ºC-15~43
Power Supply (V/Hz)220-240V/1PH/50HZ
Rated Input Power(KW)1.09~0.131.22~0.151.52~0.192.02~0.172.96~0.323.63~0.343.88~0.44
Rated Input Current(A)5.35.847.279.6614.1617.3618.56
Max Heating Current (A)6.97.59.4512.5518.422.5624.1
Water Flow Rate (m3/h)2-42-43-54-65-76-88-10
Water Connection ( inch)1-1/21-1/21-1/21-1/21-1/21-1/21-1/2
Sound level at 1m (dB(A))40~5140~5140~5140~5141~5244~5445~55
Net Dimension L*W*H(mm)965*305*560970*360*585970*360*585970*360*5851045*370*6251100*370*7101100*370*710
Qty per 20ft/40HQ(PCS)120/24090/24090/24090/24084/24048/15048/150
Remarks:The Specifications are subject to changes without notice.


CODE WP21EVTWP26EVWP31EV
Heating Performance Condition: Air 27ºC, Water 27ºC
Heating Capacity (KW)21.226.430.5
COP5.5~11.35.4~11.55.4~11.6
Heating Performance Condition: Air 15ºC, Water 26ºC
Heating Capacity (KW)16.120.523.3
COP4.4~6.44.4~6.44.5~6.5
Operating Air Temperature ºC-5~43
Power Supply (V/Hz)380V/3PH/50HZ
Rated Input Power(KW)3.89~0.474.88~0.575.64~0.66
Rated Input Current(A)6.968.7310.1
Max Heating Current (A)9.111.413.1
Water Flow Rate (m3/h)8-1010-1212-14
Water Connection ( inch)1-1/21-1/21-1/2
Sound level at 1m (dB(A))45~5548~5849~59
Net Dimension L*W*H(mm)1100*370*7101110*410*9601110*410*960
Qty per 20ft/40HQ(PCS)48/15020/8620/86
Remarks:The Specifications are subject to changes without notice.
